Lift Phones – Analog
2N’s renowned Lift1 range of autodialler phones, as used by lift OEMs, provide a lift communication solution designed for outstanding two-way emergency communication from and to the lift using line power from a landline or GSM gateway. Its typical use is in lifts where emergency communication is required between the cabin and the control centre or machine room. Lift1 phones can store up to six numbers and it will cycle through those up to 9 times until call is answered. There is possibility to add second alarm number for ToC/BoC alarms or service calls from technicians. Also, Lift1 phones can have set separate 3-day test call number.
The Lift1 requires connection to lift cabin using just 2 wires in the trailing cables/flexes. Lift1 phones can be programmed by using the dial-in menu from a phone, via easy SMS text messaging (when a 2N gateway is connected) and via the Lift1 programming tool.
Lift1 Range of Autodialler Phones & Accessories:
Lift1 Cabin unit – COP version – fixed
Description:
Lift1 autodialler phone for COP fitment with LEDs on leads.
Price: £147 Exc. VAT and P&P
Product Code: 919640E
Lift1 Cabin unit – COP version – wired
Description:
Popular, easy to retrofit Lift1 autodialler phone for COP fitment with Speaker and Microphone on leads with 3M sticky ads to align with existing grill/apertures plus green/yellow LEDs also on leads.
Price: £156 Exc. VAT and P&P
Product Code: 919640XE
Lift1 Cabin unit – Compact – surface mount
Description:
Surface mounted Lift1 autodialler phone with button requiring no depth in COP or panel. Easy fitting and includes call connection LEDS plus induction loop for hearing aids.
Price: £206 Exc. VAT and P&P
Product Code: 919645E
Lift1 Cabin unit – Compact – surface mount – without button
Description:
Surface mounted Lift1 autodialler phone without button requiring no depth in COP or panel. Easy fitting and includes call connection LEDS plus induction loop for hearing aids.
Price: £197 Exc. VAT and P&P
Product Code: 919645WBE
Lift1 Cabin unit – Flush mount – with button
Description:
Flush mounted Lift1 autodialler phone with button and LED indication of call connection.
Price: £185 Exc. VAT and P&P
Product Code: 919618BE
Lift1 Cabin unit – Flush mount – without button
Description:
Flush mounted Lift1 autodialler phone without button and LED indication of call connection.
Price: £173 Exc. VAT and P&P
Product Code: 919618E

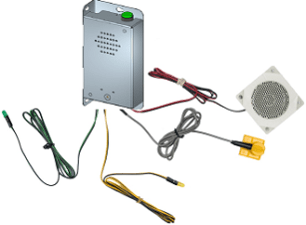

Lift1 Cabin unit – TOC mount – with voice alarm station switch
Description:
Lift1 autodialler for top of car fitment with speaker, microphone on leads with 3M sticky pads for fixing and LEDs also on leads, plus alarm button for service personnel.
Price: £226 Exc. VAT and P&P
Product Code: 919631E
Lift1 Cabin unit – TOC mount
Description:
Lift1 autodialler for top of car fitment with integrated speaker and microphone plus alarm button for service personnel.
Price: £181 Exc. VAT and P&P
Product Code: 919630E
Lift1 Machine room station set EG IP
Description:
Lift Machine room Switch and Phone set to complement EasyGateIP GSM gateway.
Price: £73 Exc. VAT and P&P
Product Code: 919655ESET
Lift1 Machine room station switch EG Pro and EG IP
Description:
Lift Machine room Switch only to complement EasyGatePRO/EasyGateIP GSM gateways.
Price: £54 Exc. VAT and P&P
Product Code: 913654E
Lift1 Machine room station phone
Description:
Analog 2-wire Lift Machine room phone.
Price: £30 Exc. VAT and P&P
Product Code: 304965
Lift1 Machine room station set EG Pro
Description:
Lift Machine room Switch and Phone set to complement EasyGatePRO GSM gateway.
Price: £69 Exc. VAT and P&P
Product Code: 919654ESET
Lift1 Voice Alarm Station Audio unit
Description:
Top of Car, Bottom of Car (ToC/Boc) Audio unit
Price: £49 Exc. VAT and P&P
Product Code: 913660E
Lift1 Voice Alarm Station Switch for Lift1 Compact
Description:
Lift1 Switch to connect top of Car, Bottom of Car (ToC/Boc) Audio unit
Price: £45 Exc. VAT and P&P
Product Code: 913663E
Lift1 Voice Alarm Station Switch for Lift1 COP
Description:
Lift1 Switch to connect top of Car, Bottom of Car (ToC/Boc) Audio unit
Price: £45 Exc. VAT and P&PP
Product Code: 913661E
Lift1 Voice Alarm Station set (top & under the cabin)
Description:
Lift1 Switch to connect top of Car, Bottom of Car (ToC/Boc) Audio unit
Price: £115 Exc. VAT and P&P
Product Code: 913661ESET
Lift1 Range of Autodialler Phones & Accessories:
Lift1 Voice Alarm Station set (top OR under the cabin)
Description:
Lift 1 Audio unit (1) for top of Car or Bottom of Car (ToC/Boc) including Switch.
Price: £82 Exc. VAT and P&P
Product Code: 9136611ESET
Lift1 – USB programming tool
Description:
Lift1 programming tool to connect to Lift1 phones and PC/Laptop to program it.
Price: £181 Exc. VAT and P&P
Product Code: 919680E
Lift1 Switch module
Description:
Lift1 Switch Module – ask for details
Price: £25 Exc. VAT and P&P
Product Code: 913648E
Lift1 Amplifier Module
Description:
Lift1 amplifier to boost speaker volume is adverse environments. Requires local power in the lift cabin.
Price: £59 Exc. VAT and P&P
Product Code: 913650E
Lift1 Autodialler Phone Benefits:
- 5 Year Warranty
- A comprehensive solution for single lifts
- Powered over phone line or gateway
- Supports CPC and P100 protocols
- EN81:28 compliant

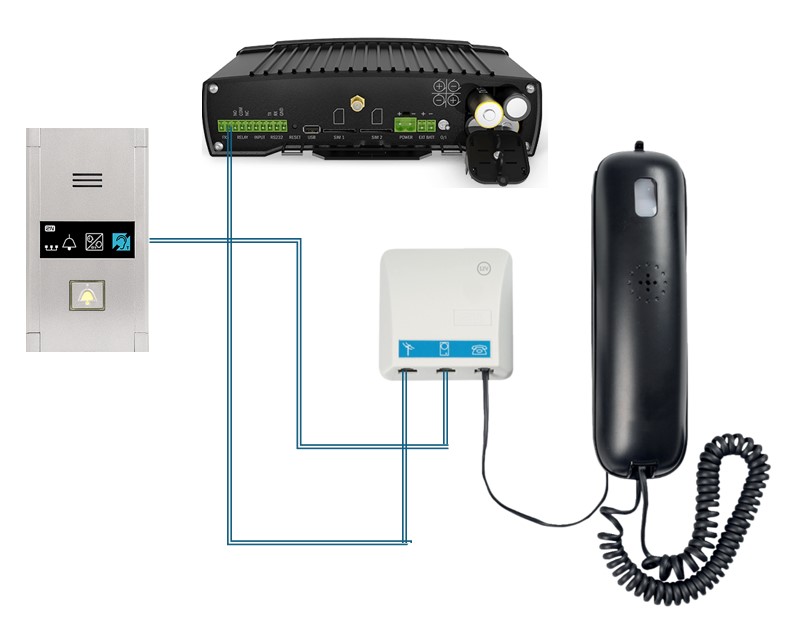

Lift1 Connection with GSM gateway & MR Phone:
Lift1 Schematic:
