Lift Phones – VoIP
The 2N® LiftIP 2.0 is a unique IP-based lift emergency communicator using VoIP technology for transmitting calls from a lift cabin to the call centre or control room. IP technology allows you to have the communicator under constant monitoring, manage it remotely and power it via PoE. The option of automatic configuration in the form of predefined configuration templates makes 2N® LiftIP 2.0 a truly plug and play solution. The new generation of our SIP-based emergency communicator.
If there is IP connectivity in the lift cabin, then the LiftIP phone can be connected to that. Special attention must be paid to power backup so that the network connection to the LiftIP phone provides 1hr backup with 15mins talk-time as a minimum in a power outage, it is for that reason we recommend connecting LiftIP to our IP gateway LiftGate as this ensures that backup power in excess of EN81:28 lift standard requirements with 4hrs standby and 1 hr. talk-time.
LiftIP Cabin unit – Flush mount – without button
Description:
LiftIP VoIP phone with faceplate but without button (contacts provided) and includes LEDs for call connection.
Price: £266 Exc. VAT and P&P
Product Code: 921618E

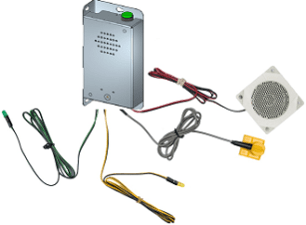

LiftIP Cabin unit – TOC mount – with voice alarm station switch
Description:
LiftIP VoIP phone for Toc mounting with microphone, speaker and LEDs for call connect visualization on leads. Includes alarm button for technicians.
Price: £306 Exc. VAT and P&P
Product Code: 921631E
LiftIP Cabin unit – TOC mount
Description:
LiftIP VoIP phone for Toc mounting with microphone, speaker and LEDs for call connect visualization all integrated. Includes alarm button for technicians.
Price: £274 Exc. VAT and P&P
Product Code: 921630E
LiftIP Voice Alarm Station set (top & under the cabin)
Description:
Top/Bottom of lift audio units with switch to connect to LiftIP and extend voice communication and alarm call from ToC/BoC. The BoC option provides an easier alternative that pit phone.
Price: £115 Exc. VAT and P&P
Product Code: 921001SET
LiftIP Cabin unit – COP version – fixed
Description:
LiftIP for COP fitment with speaker and microphone positions fixed. LEDs yellow/green for call connect included.
Price: £240 Exc. VAT and P&P
Product Code: 921640E
LiftIP Cabin unit – COP version – wired
Description:
LiftIP for COP fitment with speaker and microphone and LEDs on leads to allow flexible placement using the supplied 3M sticky pads.
Price: £250 Exc. VAT and P&P
Product Code: 921640XE

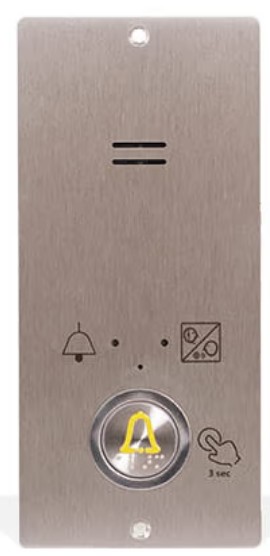

LiftIP Cabin unit – Flush mount – with button
Description:
LiftIP flush fitting with faceplate, button and LEDs for call connect confirmation.
Price: £279 Exc. VAT and P&P
Product Code: 921618BE
LiftIP Cabin unit – Flush mount 115 x 190 – with button
Description:
LiftIP flush fitting with wide faceplate, button and LEDs for call connect confirmation.
Price: £282 Exc. VAT and P&P
Product Code: 921619BE
LiftIP Voice Alarm Station switch
Description:
Switch to connect IP machine room phone.
Price: £45 Exc. VAT and P&P
Product Code: 921661E
IP Handset, Black / White
Description:
IP machine room phone available in black or white.
Price: £86 Exc. VAT and P&P
Product Code: 1120101B, 1120101W
24/7 Monitoring of the availability Connect the 2N® LiftIP 2.0 to the 2N® Elevator Centre and keep it under control 24/7. Once the communicator malfunctions, you will be notified immediately via email or operational call.
Remote management & configuration It’s easier and faster than ever to change a configuration template, set up or update this IP-based communicator. Connect it to the 2N® Elevator Centre and do all this remotely.
Alarm calls tied to video If elevator passengers get trapped, the audio call from the 2N® LiftIP 2.0 dialler can be linked to the video feed from an IP camera in the lift. The dispatcher thus has an immediate overview of a situation in the lift cabin.
Data protection & network security 2N® LiftIP 2.0 meets the very highest security criteria for personal data protection, product security and network infrastructure security.
Future-proof communicator 2N® LiftIP 2.0 is a smart lift communicator that uses existing IP infrastructure for SIP-based communication. The IP technology enables connection with other systems in the building.
High-quality audio Forget about crackling during the emergency calls. VoIP technology ensures instantly connected calls with a full duplex audio delivering crystal clear sound.
Different variants Choose from three communicator variants depending on where you need to install it: on top of the cabin (TOC), hidden behind the panel or flush mount on the panel.
Onsite or remote calling 2N® LiftIP 2.0 can call to either the reception on a LAN or to a remote call centre using the 2N® LiftGate. This smart IoT router supports calls via the WAN port or its integrated 4G dual SIM gateway

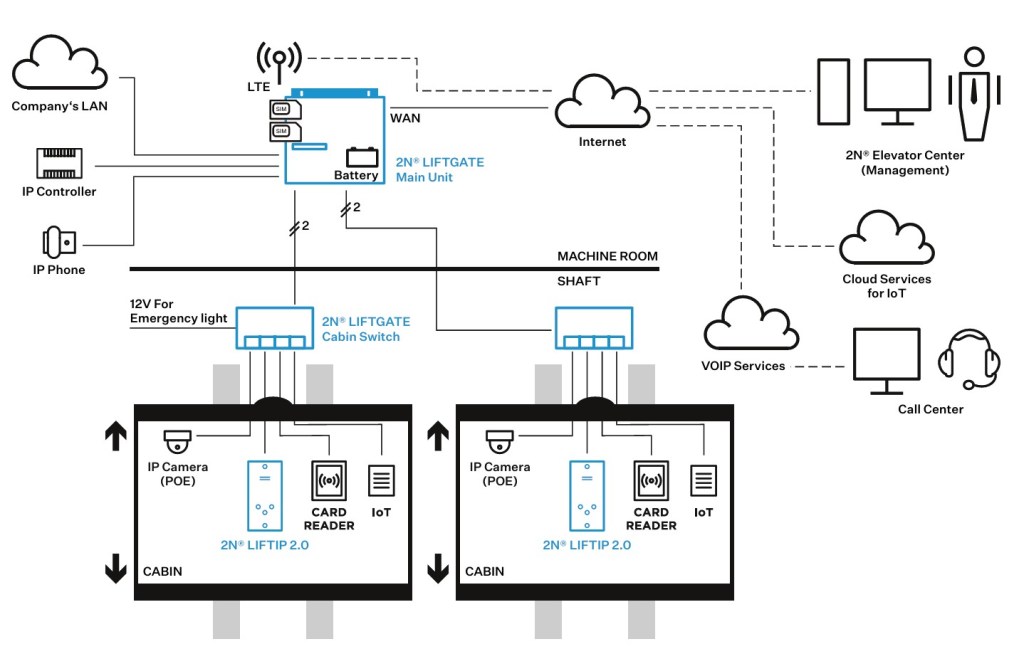

LiftIP Connection Schematic:
Payment: Payment by credit card or on a pro-forma invoice. Please enquire about credit terms if required.
Product Availability: Delivery times vary between 1-8 weeks depending on whether the products are in stock at the time of order.
