Multi-Lift Communication Solution – Lift 8
Lift8 is suitable for emergency communications to lifts, including Fireman’s requirement, and also for evacuation lifts and landing communication (up to 56 landings). A highly modular elevator communication system, where the two-wire bus makes the 2N Lift8 readily installable in any elevator context. This means that when it comes to providing for emergency elevator communications you won’t have to trouble with putting in new cabling. 2N Lift8 meets all the applicable EU standards. Lift8 is based on simple, 2-wire technology and is designed to provide emergency call communications, and 3-day test calls for up to 8 lifts. The first lift and its shaft units can be wired directly to the Lift 8 Central Unit, but the 2nd thru 8th lift require Lift8 Splitters and those splitters use a 6-wire bus to the Central Unit and can be placed adjacent to it from which all the remaining lifts and shaft units are connected with 2-wires.
Description:
- Cost effective modular solution for multiple lifts
- Choice of call connectivity including POTS/4G/VoIP
- 4hr back-up integrated into Central Unit, 1hr operation time
- Easy replacement of backup battery
- Range of audio units for cabin and shaft
- EN81:72 (Fireman’s) compliant
- EN81:28 compliant
- 5 year warranty
Product Code:

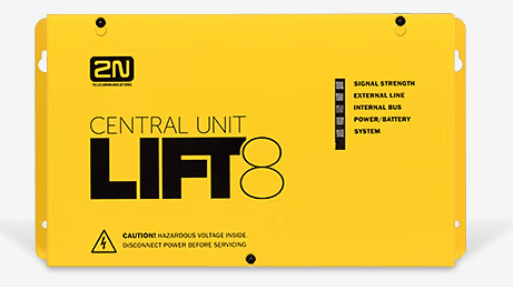

Lift8 Central Unit
918600E
Price:
£353 each
(Exc. VAT and P&P)
Lift8 Standards:
Lift8 Schematic:
Lift8 for evacuation communications:
A 2N® Lift8 Central Unit can be utilized for Main Elevator Evacuation Floor (MEEF) to Evacuation lift communication using the Fireman’s type priority call logic for the MEEF lift intercom. One Lift8 Central Unit can support either a Fireman’s lift or an Evacuation lift, plus a further seven regular lifts. To support Lift8 landing intercoms a Lift8 Central Unit needs to be dedicated for that purpose and the MEEF intercom to all landings (Lift 8 audio units with button & faceplate mounted using wall-boxes) can either be a low-cost machine room (MR) type unit, or a more user-friendly IP desk-phone, possibly with expansion module for easy landing call shortcuts. Use of an MR phone for this does not require any comm’s module while the IP phone currently requires the VoIP module, until Q1-2025, when that functionality will be integrated without a comm’s module.

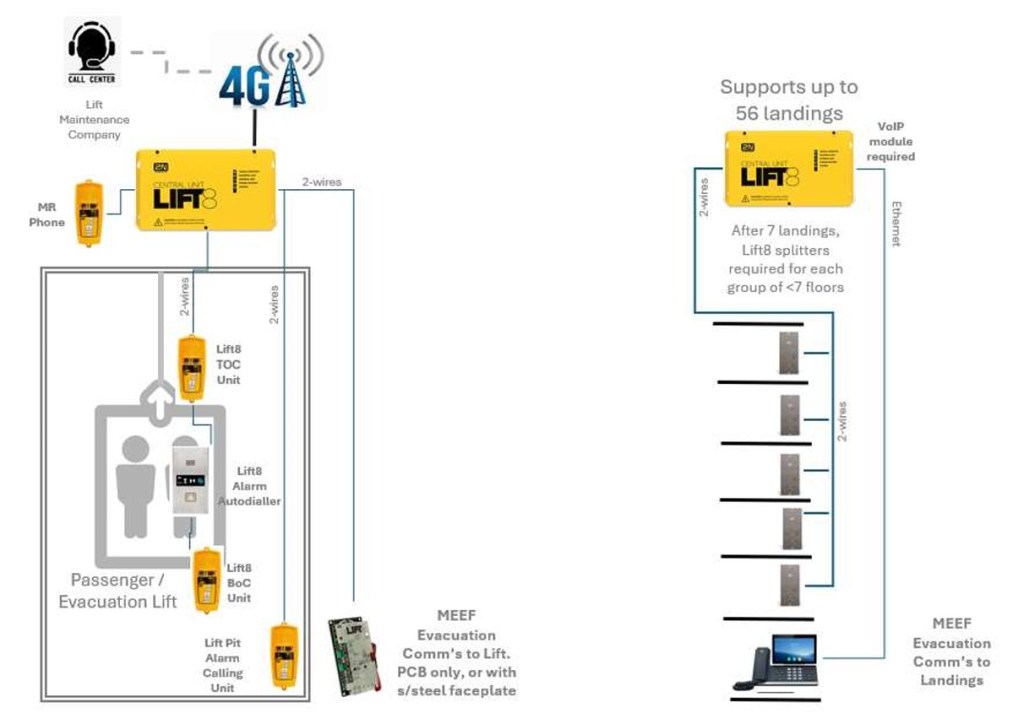

Lift8 Schematic:(Evacuation Intercoms to landings & lift):
Lift8 Devices & Accessories:
Lift8 – PSTN Module
Description:
POTS line communications module which is useful if dual-SIM connectivity is needed as you can add a 2N dual-SIM gateway using that module.
Price: £77 Exc. VAT and P&P
Product Code: 918652E
Lift8 – 4G/LTE Module
Description:
4G communications module with SIM support which operates on all UK networks.
Price: £168 Exc. VAT and P&P
Product Code: 918658G
Lift8 – VoIP Module
Description:
VoIP Communications module which connects to a fixed building (IP) network and connects thru to on/off site IP-PBX or goes via the internet to a VoIP Service Provider.
Price: £92 Exc. VAT and P&P
Product Code: 918653E
Lift8 – VoIP Module 100 Mbit
Description:
VoIP Communications module which connects to a fixed building (IP) network (100 Mb/s support) and connects thru to on/off site IP-PBX or goes via the internet to a VoIP Service Provider.
Price: £98 Exc. VAT and P&P
Product Code: 9186531E
Lift8 – Audio Phone Unit COP
Description:
Lift8 audio unit for fitting to the car operating panel (COP) with fixed speaker and microphone and green/yellow call connected LEDS on leads.
Price: £107 Exc. VAT and P&P
Product Code: 918610E
Lift8 – Audio Unit COP, Cable version
Description:
Lift8 audio unit for fitting to the car operating panel (COP) with speaker and microphone on leads with sticky 3M pads to fixed to rear of COP plus green/yellow call connected LEDS on leads.
Price: £124 Exc. VAT and P&P
Product Code: 918610XE
Lift8 – Audio Unit Compact, With button
Description:
Surface mount Lift8 audio unit with alarm button for when this is no additional depth is available. Includes button and call connect information as well as induction loop for hearing aids.
Price: £197 Exc. VAT and P&P
Product Code: 918613E
Lift8 – Audio Unit Compact, Without button
Description:
Surface mount Lift8 audio unit without alarm button for when this is no additional depth is available. Includes call connect information as well as induction loop for hearing aids.
Price: £185 Exc. VAT and P&P
Product Code: 918613WBE
Lift8 – Audio Unit Flush, With button
Description:
Flush fitting Lift8 audio unit with alarm button for retrofitting on a COP. Includes button and call connect information as well as induction loop for hearing aids.
Price: £146 Exc. VAT and P&P
Product Code: 918618BE
Lift8 – Audio Unit Flush, Without button
Description:
Flush fitting Lift8 audio unit without alarm button for retrofitting on a COP. Includes button and call connect information as well as induction loop for hearing aids..
Price: £133 Exc. VAT and P&P
Product Code: 918618E
Lift8 – Audio Unit Fireman, Key
Description:
Lift8 Fireman’s unit for FSAL mounting. Pressing call button cancels any call in progress in the Fireman’s lift and maintains call. Unit includes LED signalization of connected call to Fireman’s lift and pressing call button again can cancel call to Firemen’s lift. Includes key Switch for activating Fireman’s lift recall.
Price: £284 Exc. VAT and P&P
Product Code: 918615E
Lift8 – Audio Unit Fireman, PCB
Description:
Lift8 Fireman’s/Evac’ unit as a PCB for FSAL/MEEF panel mounting. Closing call contacts cancels any call in progress in the Fireman’s/Evac’ lift and maintains a call. Unit includes LED signalization of connected call and pressing call button again cancels call to Firemen’s/Evac’ lift. Includes contacts for activating Fireman’s/Evac lift recall.
Price: £129 Exc. VAT and P&P
Product Code: 918623E
Lift8 Machine room Phone unit, PCB
Description:
Lift8 machine room phone as PCB for mounting in a panel with contacts for keyboard for audio unit selection.
Price: £129 Exc. VAT and P&P
Product Code: 918623E
Lift8 – Audio Unit Machine room
Description:
Lift8 machine room phone allowing all cabin and shaft units to be individually addressable plus conference call feature.
Price: £152 Exc. VAT and P&P
Product Code: 918611E
Lift8 – Audio Unit Shaft
Description:
Lift8 audio unit for the pit or top/bottom of lift car.
Price: £147 Exc. VAT and P&P
Product Code: 918612E
Lift8 – Audio Unit Shaft, Antivandal
Description:
Lift8 audio unit for the pit or top/bottom of lift car in anti-vandal design.
Price: £238 Exc. VAT and P&P
Product Code: 918617E

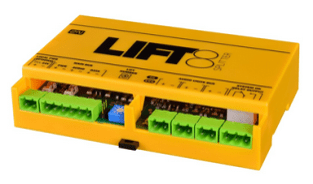

Lift8 – Splitter
Description:
Description:
Lift8 Splitter with one splitter for each additional lift after the first lift, as that can be connected (2-wires) directly to the Central Unit.
Price: £147 Exc. VAT and P&P
Product Code: 918620E

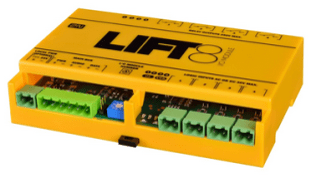

Lift8 – I/O Module
Description:
Lift8 I/O module allows inputs and actions via relays to be triggered for basic lift monitoring or capturing events from sensors like pit flooding.
Price: £128 Exc. VAT and P&P
Product Code: 918621E
Lift8 – External Pictogram Driver
Description:
Pictogram driver support in case that is required with one of the audio units that does not have them integrated.
Price: £22 Exc. VAT and P&P
Product Code: 918655E
Lift8 head set for machine room unit
Description:
Lift8 machine room headset that connects to the fixed Lift8 machine room phone to allow technicians more movement.
Price: £28 Exc. VAT and P&P
Product Code: 918671E
