Single Lift GSM Gateways
2N are leaders in lift communication GSM gateways for replacement of PSTN landlines and 2N’s 4G EasyGate IP gateway is the market leader as used by multinational lift OEMs. One gateway replaces one landline and supports calls from and to the connected lifts. The gateways come with an antenna on a 3m cord and an optional high-gain antenna with 10m cord is also available (see Accessories). In case the lift controller area has a poor mobile signal the two wires from the lift phone can be extended a significant distance to another location within a building where the mobile signal may be stronger. We recommend using SIMs that can roam across all 4 UK networks. 2N gateways generally work with any brand of analogue lift phone whether line-powered, or with separate power supply within the lift car.

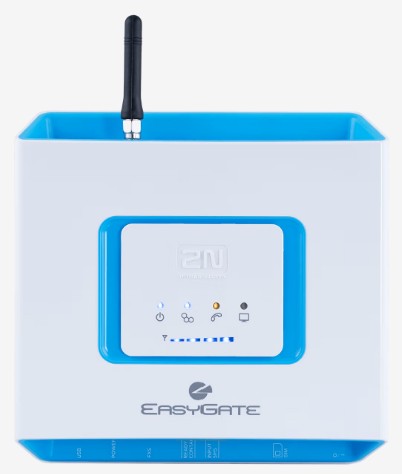

2N EasyGate PRO GSM Gateway (2G)
Use the 2N EasyGate PRO for reliable emergency communication with the nominated call centre. Simply insert your SIM card (remove any PIN), connect your analogue phone and power up the gateway and you’re ready to make calls. The gateway will automatically notify you via a text message if the primary power supply fails or if he battery needs replacement. LEDs inform you about signal strength.
EasyGate PRO Description:
- Affordable legacy model
- 2G only
- Single SIM
- SMS alerts
- No Monitoring

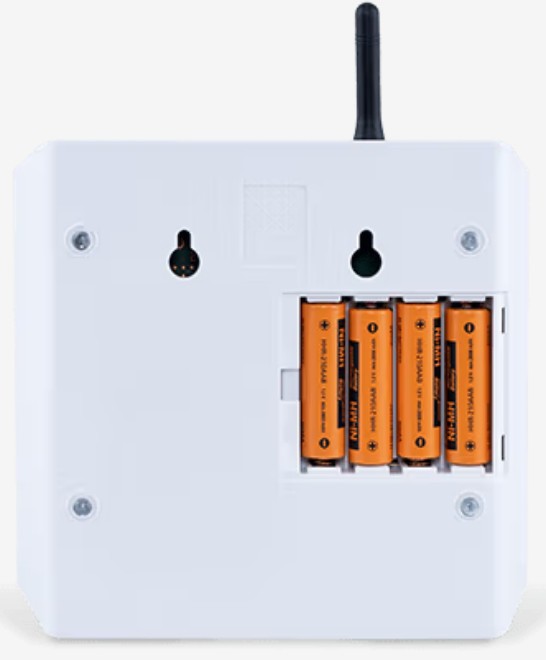

- 4hr battery backup (1hr talk-time)
- EN81:28 Compliant
- 5 Year Warranty
EasyGate PRO Price:
£165 each (Exc. VAT and P&P)
Product Code: 5013321LE
EasyGate PRO Resources:

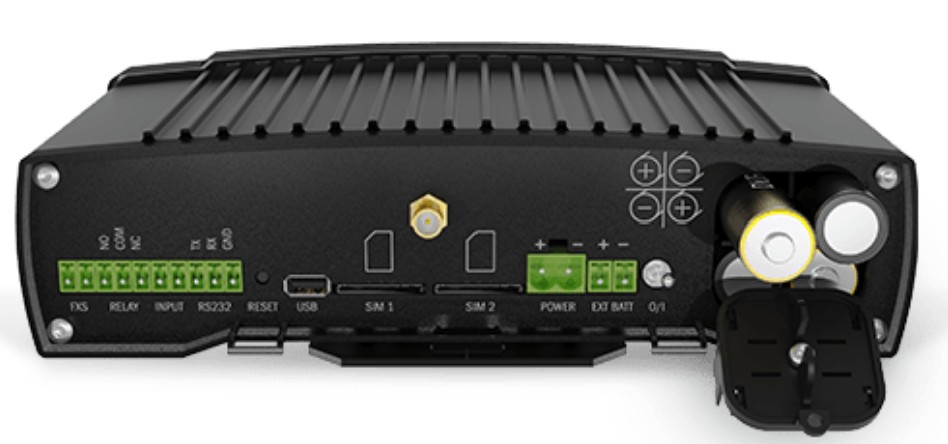

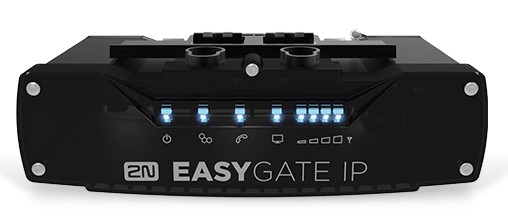

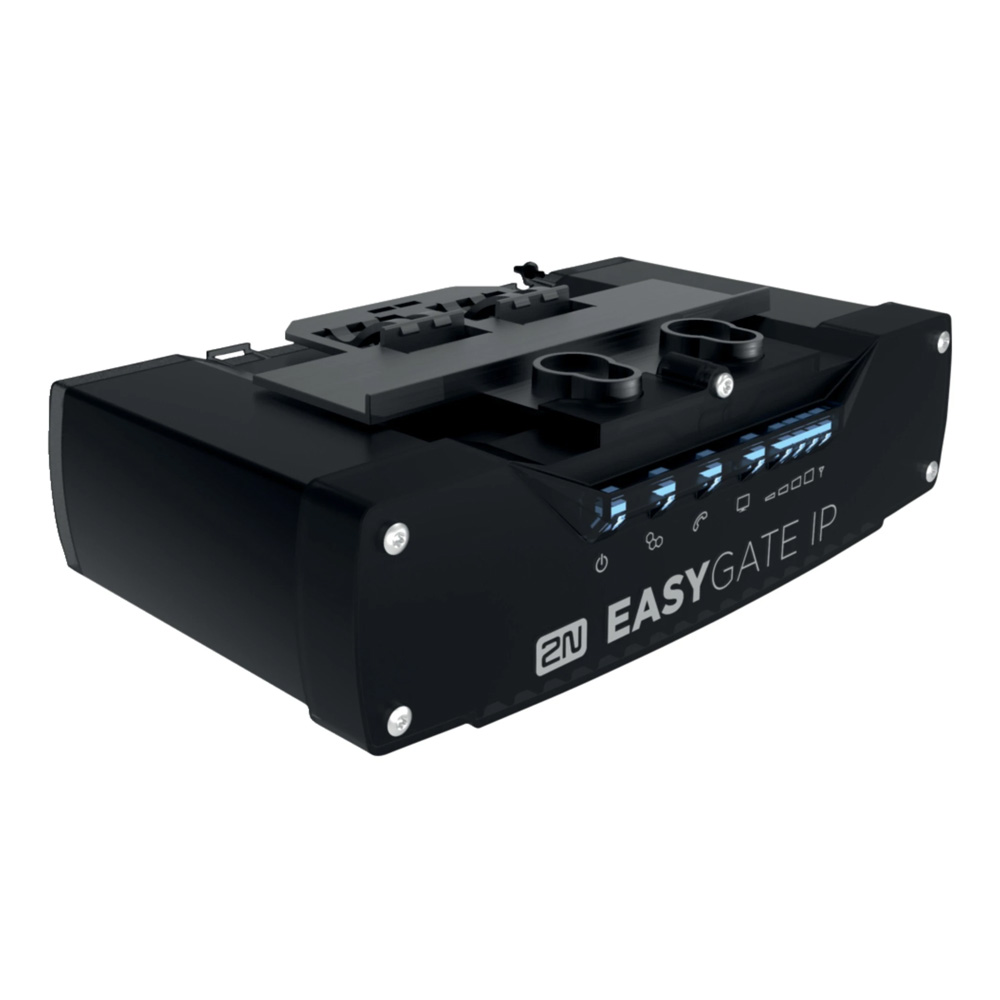

2N EasyGate IP Gateway (4G)
2N’s EasyGate IP gateway was developed in close collaboration with a leading lift manufacturer to meet the needs of the industry and provide all features, functions and compliance that might be required. The gateway comes with 2-wire cable, antenna and all terminal sockets needed. 2N recommend hard wiring the gateway into 240v so that’s why the supplied power cord just has loose ends.
EasyGate IP Description:
- 4G
- Dual SIM
- Rugged IP43 construction
- SMS alerts
- Cloud Monitoring with email alerts
- 4hr battery backup (1hr talk-time)

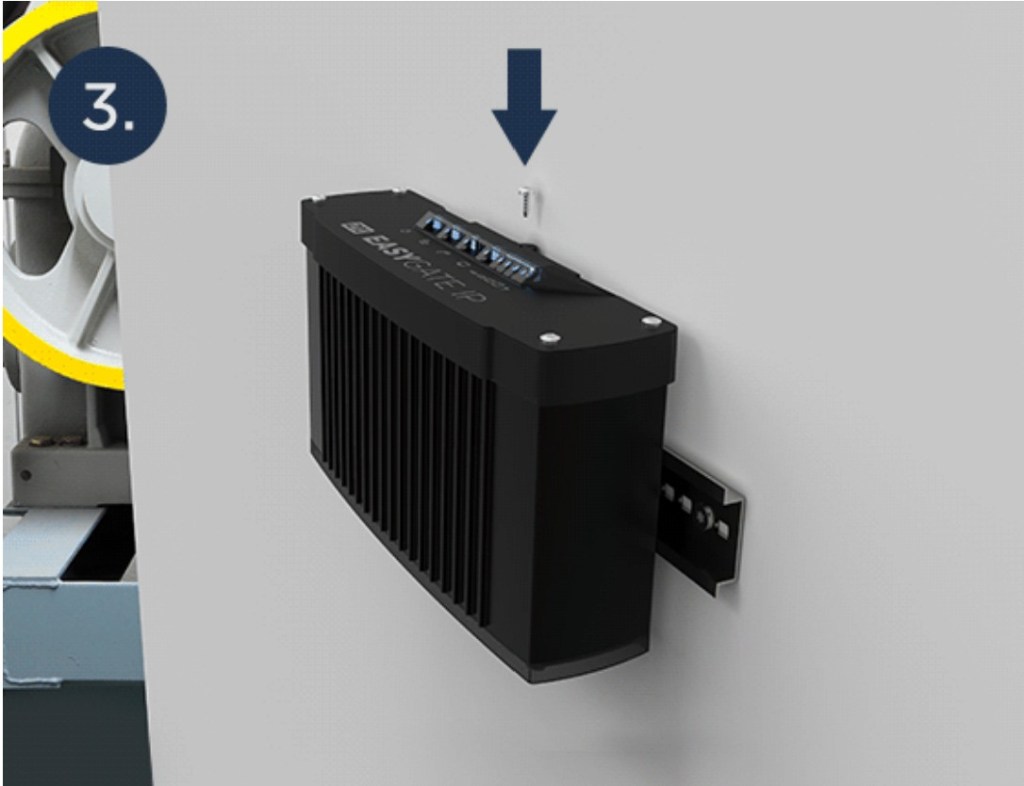

- Wall or DIN rail mounting
- Optional VoIP-over-Mobile Included
- EN81:28 Compliant
- 5 year warranty
EasyGate IP Price:
£240 each (Exc. VAT and P&P)
£2,300 per carton of 10 (Exc. VAT and P&P)
£210 each on orders of 100 or more (Exc. VAT and P&P)
Product Code: 5023001E
EasyGate IP Resources:
Coming Soon: By the end of Q1-2025, 2N will launch its long-awaited EasyGateIP+ which will have same shape/form as EasyGateIP but offer far more connectivity options to the lift and machine room area including Lift Phone, LAN, WAN (Building Network), RS232/485, Can-Bus etc. This will allow the easy connection of lift machine room monitoring units for cloud/internet connection. Product Code for pre-orders #5025001E
Product Availability: Delivery times vary between 1-8 weeks depending on whether the products are in stock at the time of order.
Payment: Payment by credit card or on a pro-forma invoice. Please enquire about credit terms if required.
